Name: SC-R Frame
Brand: Sturdy Cycles
Price: 4800.00 GBP
Availability: InStock

More information

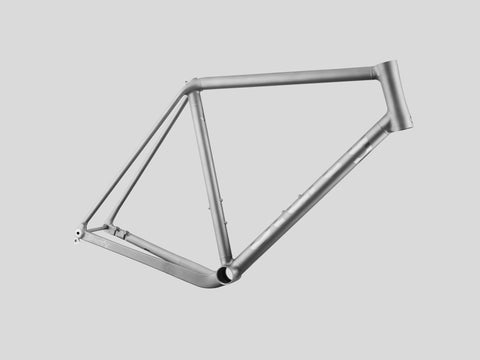

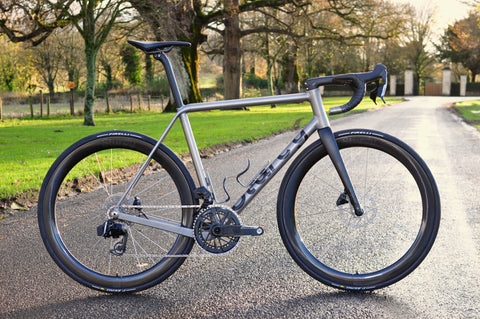

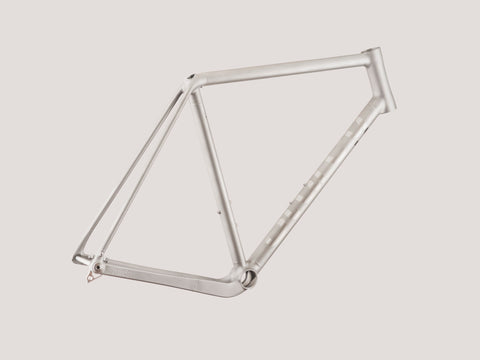

‍Please note that the full bike pictures show a representative fully assembled bike, the frames are sold as 'frame only' as per the description above.

Shipping costs are not included in this price and you will be invoiced for shipping once the build is packed and ready to leave the workshop.

In the UK this will typically be around £30, for EU customers this will typically be around £100, the rest of the world can vary significantly depending on specific location. A note on VAT. Unless you are based in the UK you will not be charged UK VAT (prices are show EX VAT). The frames are wholly manufactured here in the UK and so may be subject to preferential origin agreements that are in place between the UK and many other countries. If a preferential origin agreement is in place the frame will be shipped under this arrangement with the required customs declarations made on the documentation.

Lead times

These frames are made on demand alongside our made to measure builds in our workshop in Frome, Somerset. Each frame is made to order however we generally keep stock of all required parts and materials meaning that we usually ship within two weeks of an order being placed.
At busy periods this lead time may extend to 6-8 weeks. If in doubt please contact us for current lead times.

The Sturdy Cycles SC-R is a premium road bike engineered for comfort, efficiency, and exceptional handling on the tarmac. Available as a standalone frame for those who prefer to spec and assemble their own bike, an additional Enve component bundle is available.

We also offer a fully assembled, ready to ride machine featuring a curated selection of our favorite high-performance components. This includes a full Enve road build kit, deep-section carbon wheelset, SRAM AXS wireless electronic shifting, and a custom finish logo. Additionally, we offer a titanium accessory kit that can be color-matched to the frame logo, giving your bike an extra touch of style.

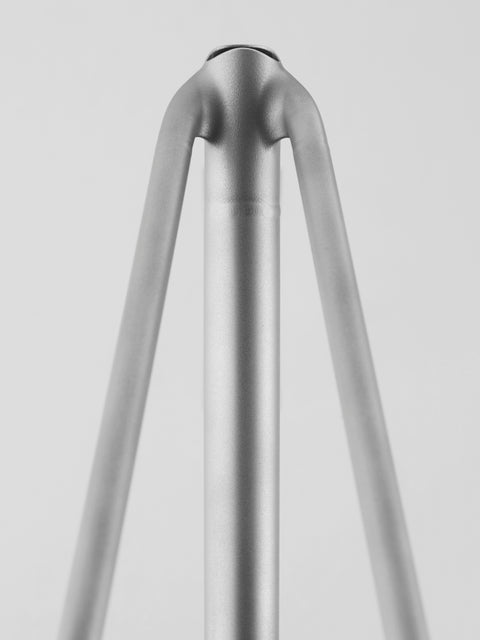

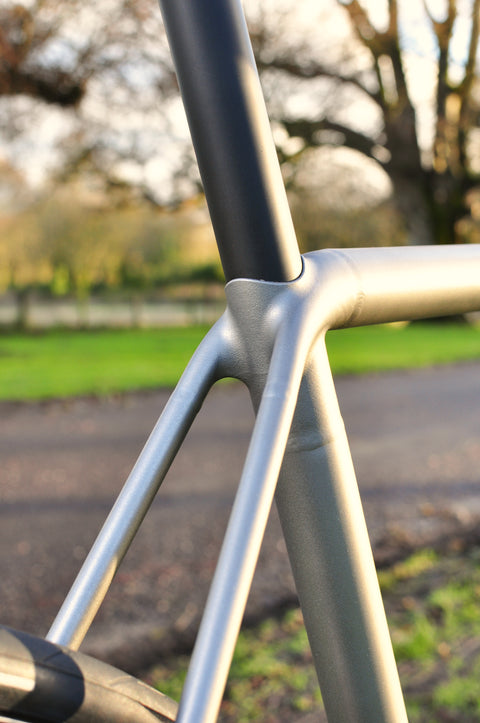

The SC-R incorporates the game-changing 3D printing technology pioneered in our fully custom models, all hand-made and meticulously finished at the Sturdy Cycles workshop in Frome, Somerset. Optimized for versatility the frame can accommodate a maximum tire size of 35mm on 700c rims. The durable titanium frame and integrated mudguard mounting points to make this bike an ideal all-weather road bike.

While fully capable of being configured for speed, its core DNA is finely tuned for a more relaxed, endurance-friendly experience - the perfect blend of performance and comfort. A relatively low bottom bracket offsets the increased tyre sizes that are commonplace on road builds, maintaining good stability at speed without the loss of the agility expected of a road bike. The SC-R is designed to satisfy the needs and tastes of most enthusiastic club riders.

Each frame is hand made and finished to order, lead times are approximately 6-8 weeks based on stock levels. Once a customer has placed an order, Tom and Jack will begin the manufacturing process.

Finish

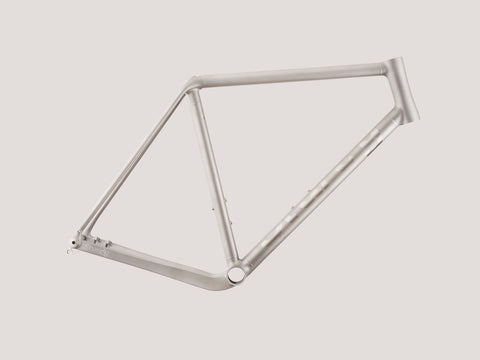

The SC-G comes in a shot peened Titanium finish featuring an oversized downtube logo brushed or in a choice of 8 Cerakote colours.

Fork

The frame is designed around a 370mm fork length and is compatible with a range of third party carbon fork models. For full internal routing we recommend the following forks:

ENVE Road In-Route Fork
Deda EDG Road fork

Geometry

More details

Frame features

Mounting points:

Mudguard mounts on chainstays and rear of seat tube

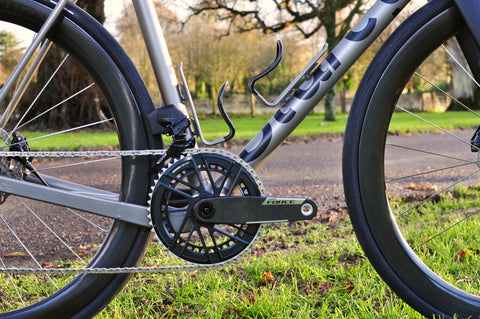

Bottle cage mount on downtube, seat tube

Frameset includes

Frame

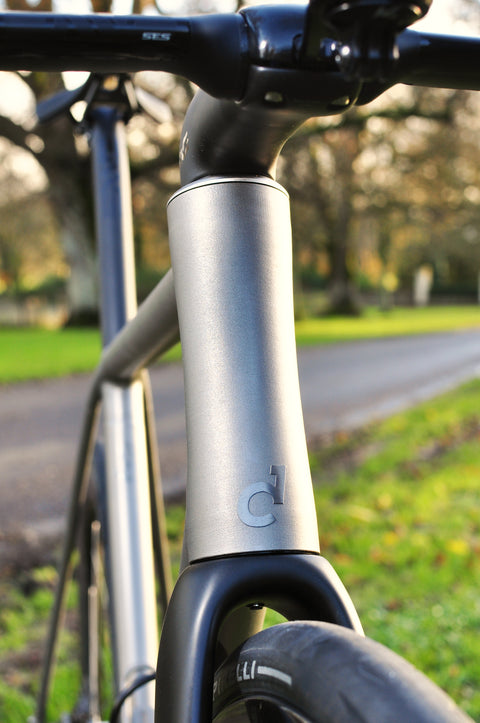

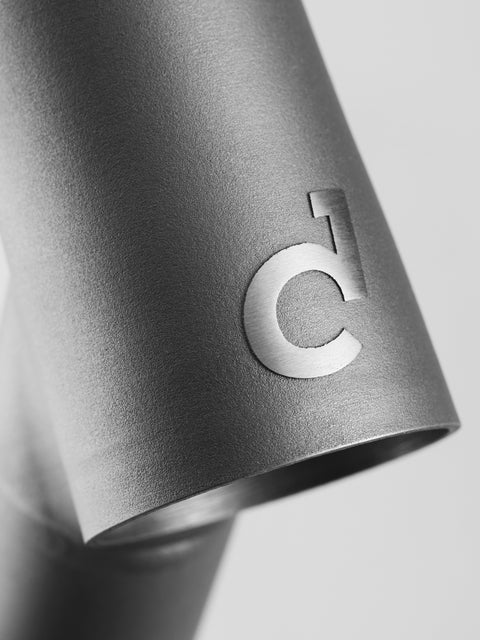

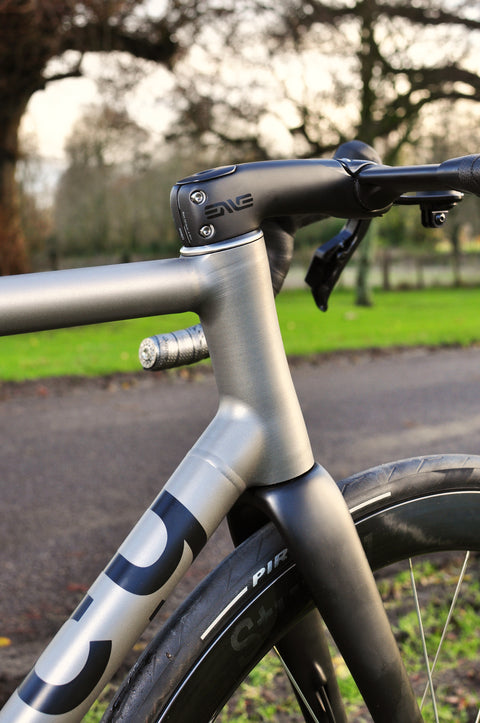

Headset: DEDA DCR. this comes with a universal top cap. The head tube diameter is 56mm at the upper bearing. If you choose the Enve in-route system we also make titanium top caps to interface with their stems

Rear thru axle (titanium)

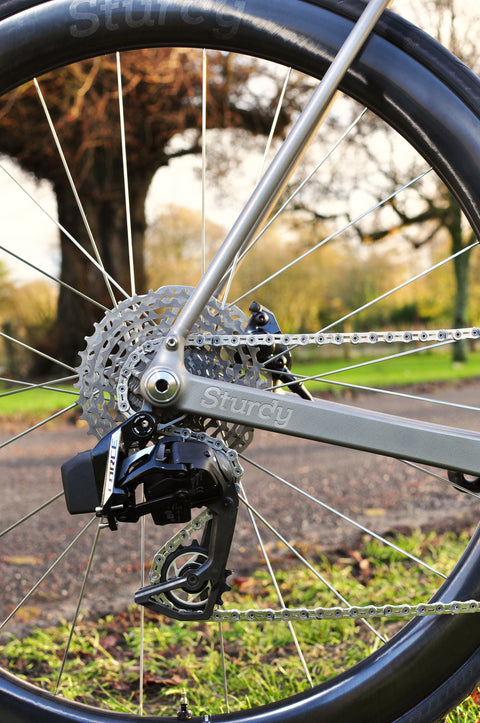

UDH hanger (titanium)

Bottle boss bolts (titanium)

Assembly standards

Headset: DEDA DCR or FSA ACR (1.5 inch upper and lower bearing)

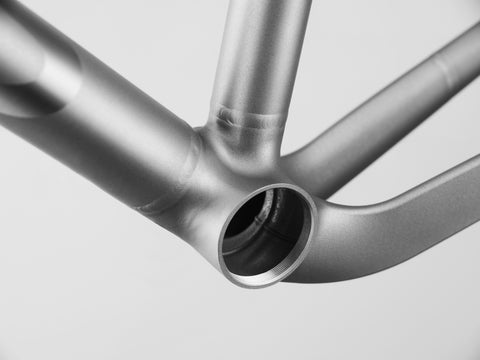

Bottom Bracket: t47-68 (68mm wide T47 threaded shell)

Rear axle spacing: 142*12mm

Rear axle spec: 167mm length m12*1mm thread

Derailleur hanger: UDH

Brake mount: Flat mount 140mm

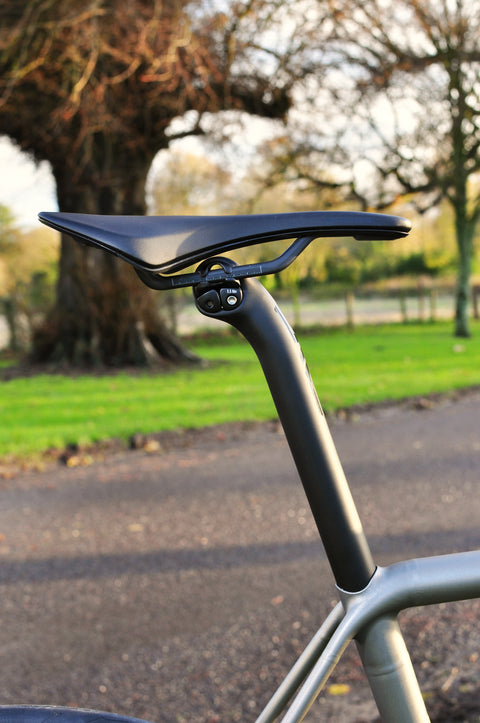

Seatpost diameter: 31.6mm

Design fork length: 370mm

Cable routing: via DCR headset system, electronic only advised. wire exit points for Shimano added by request or left blank for wireless derailleur systems

Bosses: 2x bottle cage mounts in front triangle, 3rd bottle cage mount under down tube, top tube bag mounts, mudguard mounts

Tyre clearance: 35mm maximum recommended measured tyre width on a 700c rim
